PLASTIC STRAPPING TOOL
ZP93A & ZP97A

With 18V BOSCH Li-Ion Battery capacity Increased up to 4000mAh

  • Single-handed Operation

  • Brushless Motor

  • Bosch 18V Li-lon Battery 4.0Ah

  • Pre-programmed Control Panel

  • Operation Lever for easy strap feeding & easy tool removal

STRAPTOOL
PNEUMATIC

PNEUMATIC PLASTIC STRAPPING TOOL

Powerful industrial grade heavy duty strapping

  • Powerful tension, Maxi.350Kgs (3500N) for heavy duty plastic strapping jobs.  Automatic tension , friction-weld and cut, no metal seals required.

  • Air pressure manometer for on-site air supply monitoring.

  • Adjustable tension force & sealing time for various strap specifications.

  • Much smaller air hose at 1/4” I.D. for flexible operation without hose tangling.

  • Alloyed Magnesium Aluminum mechanism ensures light weight and durable structure.

  • Patented single motor structure reduces weight and lower maintenance cost.

  • Modularized structure and reliable mechanism for easy and low cost maintenance.

  • Ergonomic design and excellent weight distribution to reduce hand fatigue

  • Built-in safety device for tension setting and prevent from scratching or breaking the strap.

  • Easy “One-Step” straps inserting.

  • User self-adjustable front & rear strap width guiders to assure perfect strap alignment.

  • User changeable strap cutting blade and other wearing parts.

  • Optional hanger to reduce operation fatigue

Anchor 1

COMBINATION TOOL

Heavy duty combination tool for PET strapping.

​

Tensioning, Sealing and cutting all in one.

PE1044 : 1/2". Use with CP34 gripper seal.

​

PE1045 : 5/8". Use with CP35 gripper seal.

​

*Good quality serrated seal is important to achieve the desired sealing performance

dispenser

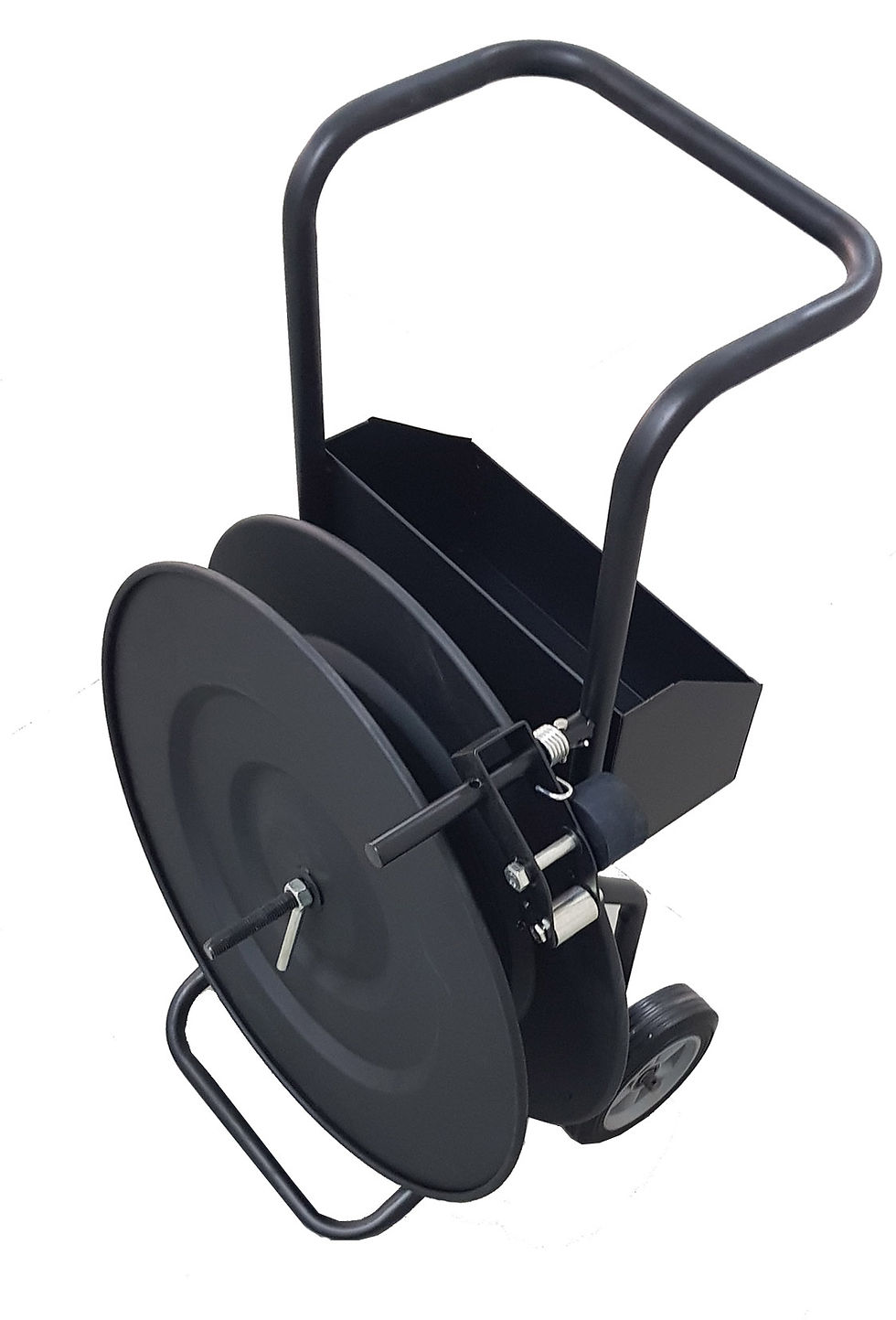

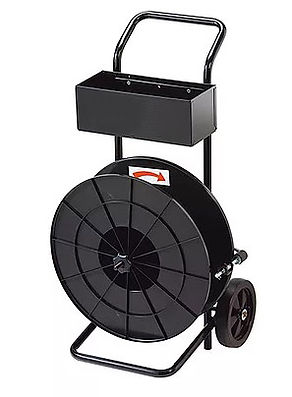

PLASTIC STRAPPING DISPENSERS

  • Core size ID (mm): 406

  • Max. strap width (mm): 40

  • Max. face coil (mm): 200

  • Disc outer dia.(mm): 600

  • Coil winding: O

  • Wheel type: 8" plastic

  • Assembled: Semi

  • **Coil winding: R means Ribbon coil. O means Oscillated/Mill coil.

sealers

PLASTIC STRAPPING CLOSURE / SEALS

Gripper (serrated) seals with zinc coating for PET strapping

  • CP 34 for 1/2" straps.

      Use with PE1044

​

  • CP 35 for 5/8" straps.

      Use with PE1045

edge

PLASTIC STRAPPING EDGE PROTECTORS

For Strapping Applications

Plastic Edge Protectors / Strap Guards can be used with steel strapping, polypropylene strapping and polyester strapping for bundling. These Corner Protectors will cushion your packaging and allow the strap to be tightened with strapping tools to its maximum tension without damaging the product. Each Plastic Edge Guard is constructed from specially formulated resin and is ribbed to hold the strapping firmly in place.
